In this lesson, you’ll learn more about scoping. But first, we’ll add the metamodel and the projections for the fourth model unit — the Tests.

In the requirements of our DSL in the introduction, we stated that
“… our client company wants a means to test the page flow before the actual webpages are produced.”
The Test model unit is the starting point for fulfilling that requirement.

In a Test, a teacher can add multiple scenarios, each describing a series of page flows.
For instance, the teacher might want to test that from the start page Theory101, a pupil who answers all questions correctly is directed to InDepth101,
and after succeeding there, proceeds to Theory102.

Within a test, we need to specify both the answers given to questions on the current page and the expected follow-up page.
Add the following to the file edu-tests.ast:

// Education/lesson7-defs/edu-tests.ast

language Education

modelunit Test {
    name: identifier;
    scenarios: Scenario[];
    reference main: SiteGroup;
    reference flow: Flow;
}

concept Scenario {
    description: string;
    testFlow: TestFlow[];
}

concept TestFlow {
    steps: Step[]; /* Note that the order is of importance */
}

concept Step {
    reference fromPage: Page;
    answerSeries: Answer[];
}

concept LastStep base Step {
}

concept Answer {
    reference question: Question;
    value: NumberConcept;
}

We’ll also define projections for these concepts. By now, none of this should look unfamiliar:

// Education/lesson7-defs/edu-tests.edit

editor default

Test {[
    Test ${self.name}
    Regarding MainTopic: ${self.main}, and flow: ${self.flow}

    ${self.scenarios}
]}

Scenario {[
    ------------------------------------
    ${self.description}

        ${self.testFlow vertical}
]}

TestFlow {[
    ${self.steps horizontal separator[===>]}
]}

Step {[
    ${self.fromPage} => ${self.answerSeries table rows}
]}

LastStep {[
    ${self.fromPage}
]}

Answer { table [
    ${self.question} | ${self.value}
]}

Now comes the interesting part.
If you try to build a test flow, you’ll notice that when adding answers, the user can still access question names from other pages.
Generate the editor, open the model lesson6, and in the side panel select TestB to see something like this:

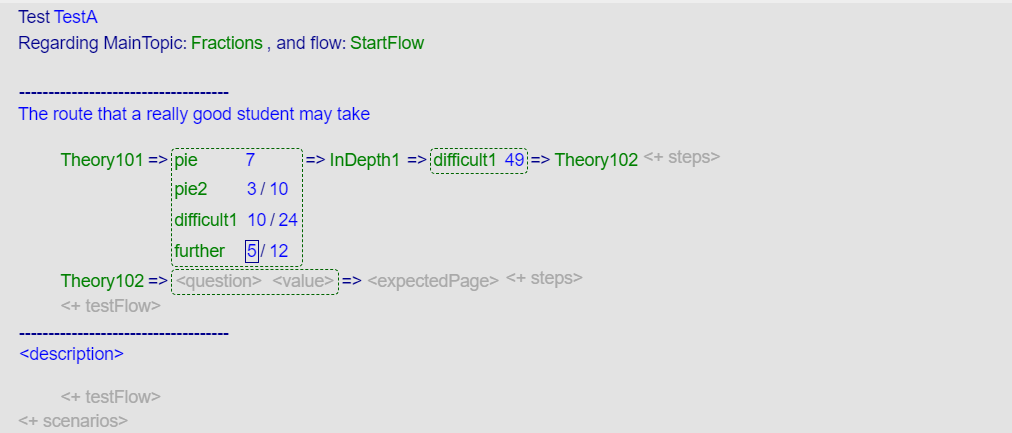

Figure 1. No scoping in the Test model unit

Here, the questions pie and pie2 belong to the page Theory101, but difficult1 and further do not.
How can we prevent such mistakes?

The answer lies in another scope rule.
We need to draw a boundary around each Step instance — a namespace that only includes the relevant names.
So, we’ll make Step a namespace. However, this namespace itself has no direct names; the question names we want belong to the fromPage property.
To tell Freon to include those, we use a namespace addition.

A namespace addition imports names into a namespace, as long as those names can be directly reached from the namespace object.
In our case, Step can use names from its fromPage, but not from other scenarios.

// Education/lesson7-defs/edu.scope

scoper for language Education

isNamespace { Page, Step }

Step {
    imports {
        self.fromPage;
    }
}

Now regenerate and take another look.
You’ll see that the available question names in each answer series are only those from the corresponding fromPage.

Yes — scoping really can be this easy!

In the next lesson, we’ll take things a step further by introducing Freon’s typing system to help users build even more reliable models.
