The CourseSchedule DSL focuses on scheduling adult training courses.
Its core concepts are courses, rooms, and teachers, with a simplified notion of time:
ten time slots per week—Monday morning through Friday afternoon.

Below is the metamodel, which by now should feel familiar.

// CourseSchedule/phase1/defs/main.ast

language CourseSchedule

model CourseSchedule {
    persons: Staff[];
    courses: CourseCategory[];
    rooms: Building[];
    schedule: Schedule[];
}

modelunit Schedule {
    name: identifier;
    timeSlots: Slot[];
    file-extension = "scd";     // the file extension used by the parser
}

modelunit Staff {
    name: identifier;
    teachers: Person[];
    file-extension = "prs";     // the file extension used by the parser
}

modelunit CourseCategory {
    courses: Course[];
    file-extension = "crs";     // the file extension used by the parser
}

modelunit Building {
    rooms: Room[];
    file-extension = "bld";     // the file extension used by the parser
}

/* model unit Schedule */
concept Slot {
    time: TimeStamp;
    reference teacher: Person;
    reference room: Room;
    reference course: Course;
}

limited TimeStamp {
    day: number; // 1 = Monday, 2 = Tuesday, etc
    part: number; // 1 indicates morning, 2 indicates afternoon
    MondayMorning = { day: 1, part: 1 }
    TuesdayMorning = { day: 2, part: 1 }
    WednesdayMorning = { day: 3, part: 1 }
    ThursdayMorning = { day: 4, part: 1 }
    FridayMorning = { day: 5, part: 1 }
    MondayAfternoon = { day: 1, part: 2 }
    TuesdayAfternoon = { day: 2, part: 2 }
    WednesdayAfternoon = { day: 3, part: 2 }
    ThursdayAfternoon = { day: 4, part: 2 }
    FridayAfternoon = { day: 5, part: 2 }
}

/* model unit Staff */
concept Person {
    name: identifier;
    fullName: string;
    phone: number;
    availability: TimeStamp[];
    reference competence: Course[];
}

/* model unit CourseCategory */
concept Course {
    name: identifier;
    description: string;
}

/* model unit AllCourses */
concept Room {
    name: identifier;
    equipment: string;
}

As a first step we’ll create a native Freon editor—kept intentionally simple.
We’ll extract a fragment for the teacher’s name and phone info, display a teacher’s competences as a checkbox list, and tidy up the rest.

// CourseSchedule/phase1/defs/main.edit

editor default

global {
    external {
        PersonIcon,
        PhoneButton,
        StaffAccordion,
        Schedule
    }
}

/* model unit Staff */
Staff {[
Staff in the category: ${self.name}

    ${self.teachers}
]}

Person {[
    [fragment name]
        Availability: ${self.availability checkbox} Competence: ${self.competence}
]
fragment name [
Nickname: ${self.name}
Full Name: ${self.fullName}
Phone number: ${self.phone}
]
}

/* model unit CourseCategory */
CourseCategory {[
Category: ${self.name}

    ${self.courses}
]}

/* model unit Schedule */
Schedule {[
Schedule ${self.name}

    ${self.timeSlots}
]}
Slot {[
${self.time}
    Teacher: ${self.teacher}
    Room:    ${self.room}
    Course:  ${self.course}
]}

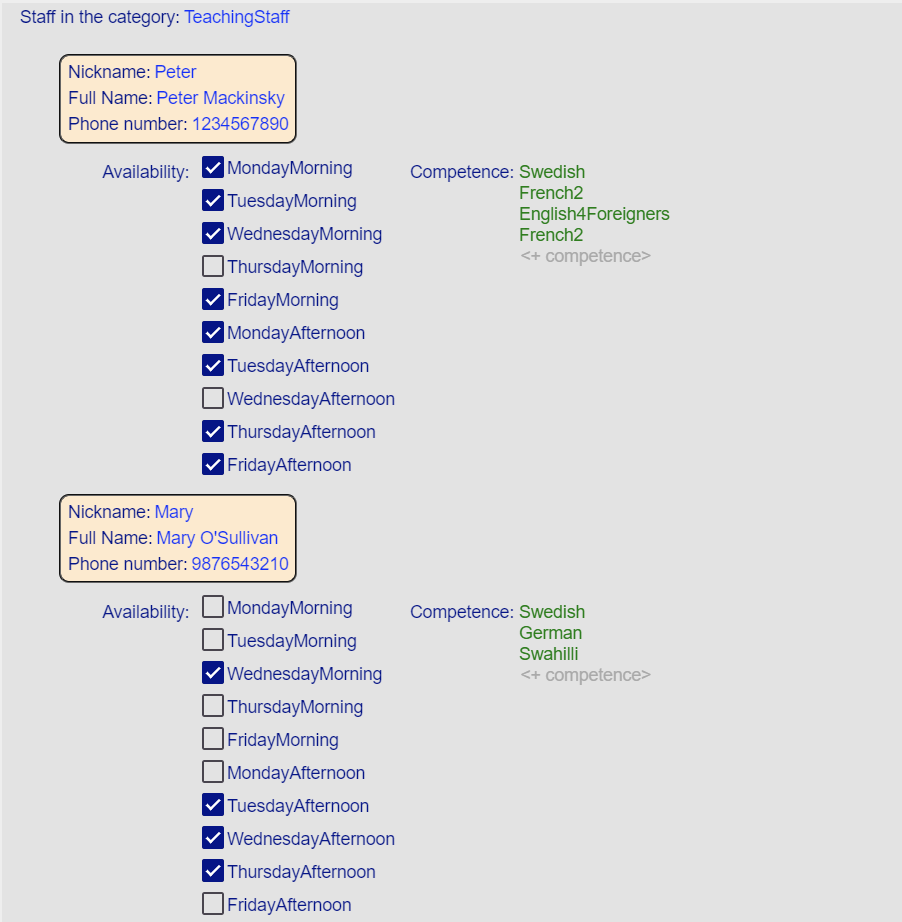

The editor for the Staff model unit now looks like this:

Figure 1. The native Freon editor
