Previously, we saw that the set of visible nodes in a namespace consists of the nodes it declares and the nodes visible in its parent namespace. This standard visibility can be extended with imports. When a namespace is imported into another namespace, its declared nodes are added to the visible nodes of the latter.

In the following example, basedOn is in the language structure definition (.ast file) a property of the InsuranceProduct concept.

// Insurance/src/defs/language-main.ast#L53-L65

concept InsuranceProduct {
    name: identifier;                       // internal name
    productName: string;                    // name by which this product is known to the public
    themes: InsuranceTheme[];               // the 'kind' of insurance
    advertisedPremium: EuroLiteral;         // the premium as known to the public
    nrPremiumDays: PremiumDays;             // the number of days for which the advertised premium is calculated
    reference parts: InsurancePart[];       // optionally, known parts can be included by reference
    reference basedOn: BaseProduct[];       // the BaseProducts from which the parts are taken

    riskAdjustment?: PercentageLiteral;     // an adjustment to the risk of the separate parts, e.g. caused by the combination of the parts
    calculation: DocuExpression;            // the premium as calculated based on the parts
    helpers: CalcFunction[];                // helper functions used to calculate the premium
}

If the following import statement is included in the .scope file, the declared nodes in the basedOn property in the user’s model will be included in the namespace identified by an InsuranceProduct. Note that both InsuranceProduct and BaseProduct (the type of basedOn) need to be defined as a namespace.

// Insurance/src/defs/scoper-docu.scope#L3-L9

isNamespace { InsuranceProduct, BaseProduct, CalcFunction, Entity, AttributeRef }

InsuranceProduct {
    imports {
        self.basedOn;
    }
}

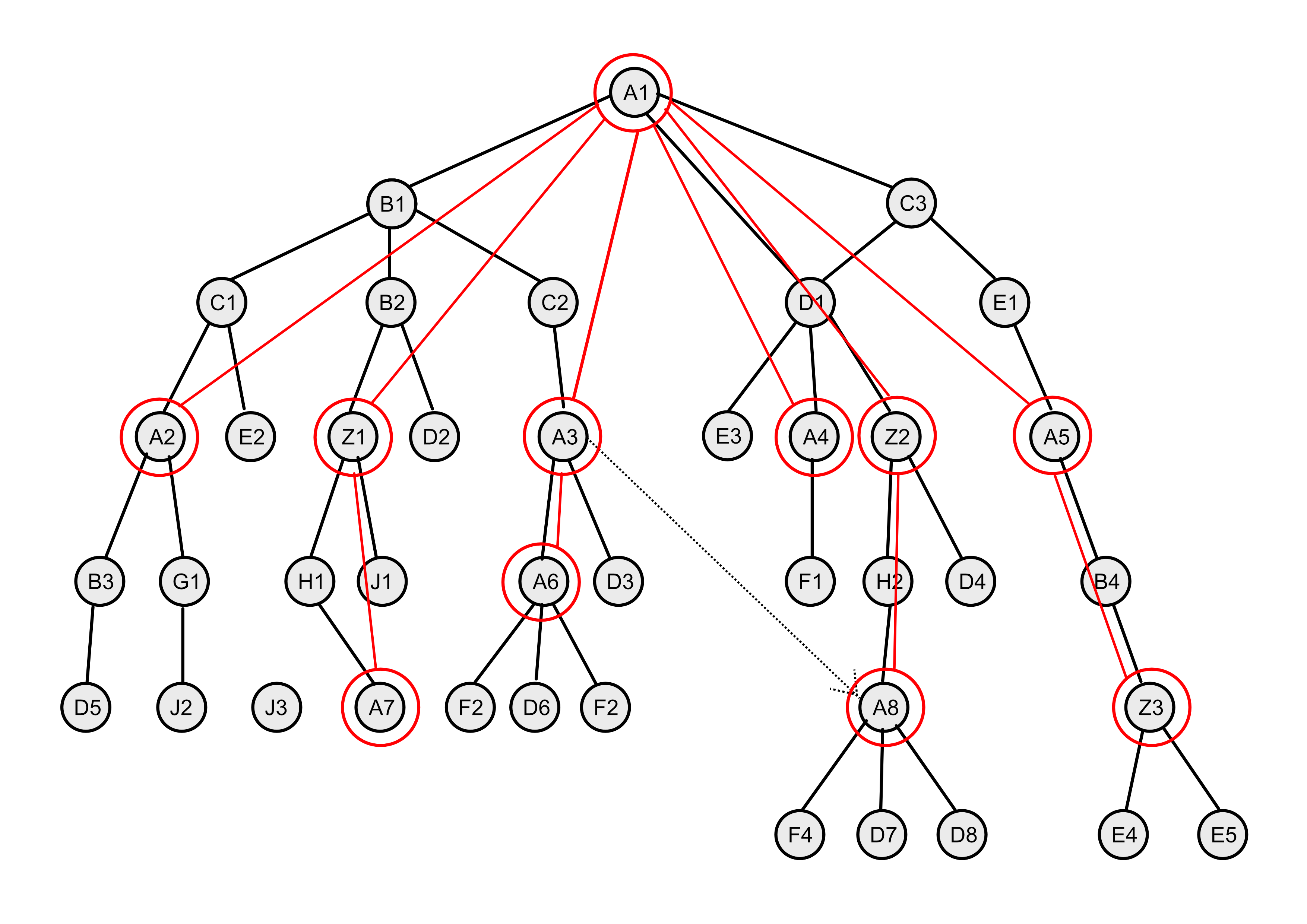

A namespace import effectively turns the namespace tree into a graph, like references make the abstract syntax tree become a graph. For instance, when the namespace A8 is imported into namespace A3 an extra edge is made between nodes A3 and A8, as shown in the next figure. This edge signifies the inclusion of the declared nodes of A8 ([F1, D7, D8]) in the visible nodes of A3.

Figure 1. Graph showing an import between Namespace nodes

Using namespace imports, you can support some kind of inheritance in your DSL. Suppose baseClass represents the “super class” of ClassWithInheritance in your language, as follows.

/* The .ast file */

concept ClassWithInheritance {
    name: identifier;
    reference baseClass?: ClassWithInheritance;
    methods: Method[];
}

concept Method {
    name: identifier;
    parameters: Parameter[];
    body: Body;
}

For brevity, the definitions of Parameter and Body are omitted. The only thing you need to know is that Body is an expression in which you can refer to a method.

Next, use a scope import to include all the declared nodes of the “super class” in the visible nodes of the “subclass”.

/* The .scope file */

ClassWithInheritance {
    imports {
        self.baseClass;
    }
}

Now suppose, the user’s model is this. (Again, for brevity, we do not include the editor definition, but the keywords class, super, and method are a definite giveaway to the link between concrete and abstract syntax.😊)

class SmallBusiness
  method calculateTurnover() {
    // some expression
  }
  method calculateRevenue() {
    // some expression
  }
  method calculateValueAddedTax() {
    // some expression
  }

class DryCleaner super SmallBusiness
  method revenueAsPercentageOfTurnover() {
    // expression using references to calculateRevenue and calculateTurnover
  }

The user can reference the methods of SmallBusiness because they are in the declared nodes of the namespace identified by SmallBusiness, and they are imported in the DryCleaner namespace by the import statement in the scope file.

Sometimes you may want to include not only the declared nodes of the imported namespace, but its imported nodes as well. In the example above, where a sort of inheritance is defined, you would want the methods of the superclass of the superclass also to be included. We can define this in the scope file by simply adding the keyword recursive in front of the import. Each import in the list can have its own keyword, in this way you have a fine-grained control over what is added.

ClassWithInheritance {
    imports {
        recursive self.baseClass;
        self.someOtherProperty;
    }
}

To add an even finer control over what and what is not imported, you can add the keyword ‘private’ to the definition of properties in the .ast file. (Not in the .scope file!) Any property that is thus marked private will not be included in the set of imported nodes. The marking does not affect the declared nodes, only the imported nodes of any namespace that imports a namespace with private properties. This means that properties marked private are visible within their own namespace, but not when that namespace is imported elsewhere.

Suppose that in the inheritance example we want to have private methods. We could adjust the .ast file like this:

concept ClassWithInheritance {
    name: identifier;
    reference baseClass?: ClassWithInheritance;
    methods: Method[];
    private privateMethods: Method[];
}

Suppose further that the user model is the following:

class SmallBusiness
  method calculateTurnover() {
    // some expression, where internalCalculation may be referenced
  }
  method calculateRevenue() {
    // some expression, where internalCalculation may be referenced
  }
  method calculateValueAddedTax() {
    // some expression, where internalCalculation may be referenced
  }
  private method internalCalculation() {
    // some expression, where internalCalculation may be referenced
  }


class DryCleaner super SmallBusiness
  method revenueAsPercentageOfTurnover() {
    // expression using references to calculateRevenue, calculateTurnover, as well as someOtherCalculation, but NOT to internalCalculation
  }
  private method someOtherCalculation() {
    // expression using references to calculateRevenue, calculateTurnover, as well as someOtherCalculation, but NOT to internalCalculation
  }

Now the visible nodes of SmallBusiness would include internalCalculation, whereas the visible nodes of DryCleaner would not. It would, however, include someOtherCalculation. But, if DryCleaner was imported in another namespace, someOtherCalculation would not be part of that namespace.

The next page will explain how to leave out the standard hierarchical namespaces (lexical scope) using namespace alternatives.
