There are occasions where you do not want to adhere to the hierarchical nature of namespaces. For example, when you want to implement a qualified name in your DSL, like moduleA.partB, where what comes after the dot is something that is visible in moduleA, but possibly not in the namespace in which this expression is located.

This can be done using namespace alternatives. Where namespace imports add nodes to the set of visible nodes, a namespace alternative both removes and adds nodes. What is removed are the visible nodes from the parent namespace. In the case of the expression moduleA.partB this would be the namespace in which the expression resides. What is added is another namespace (the alternative), which in the example would be the namespace identified by moduleA.

The effect of declaring a namespace alternative on the namespace tree is that the link of the namespace with its parent is removed, and a link to another namespace is made. This second namespace is then used as if it were an imported namespace, i.e. only the non-private (public), declared nodes become visible.

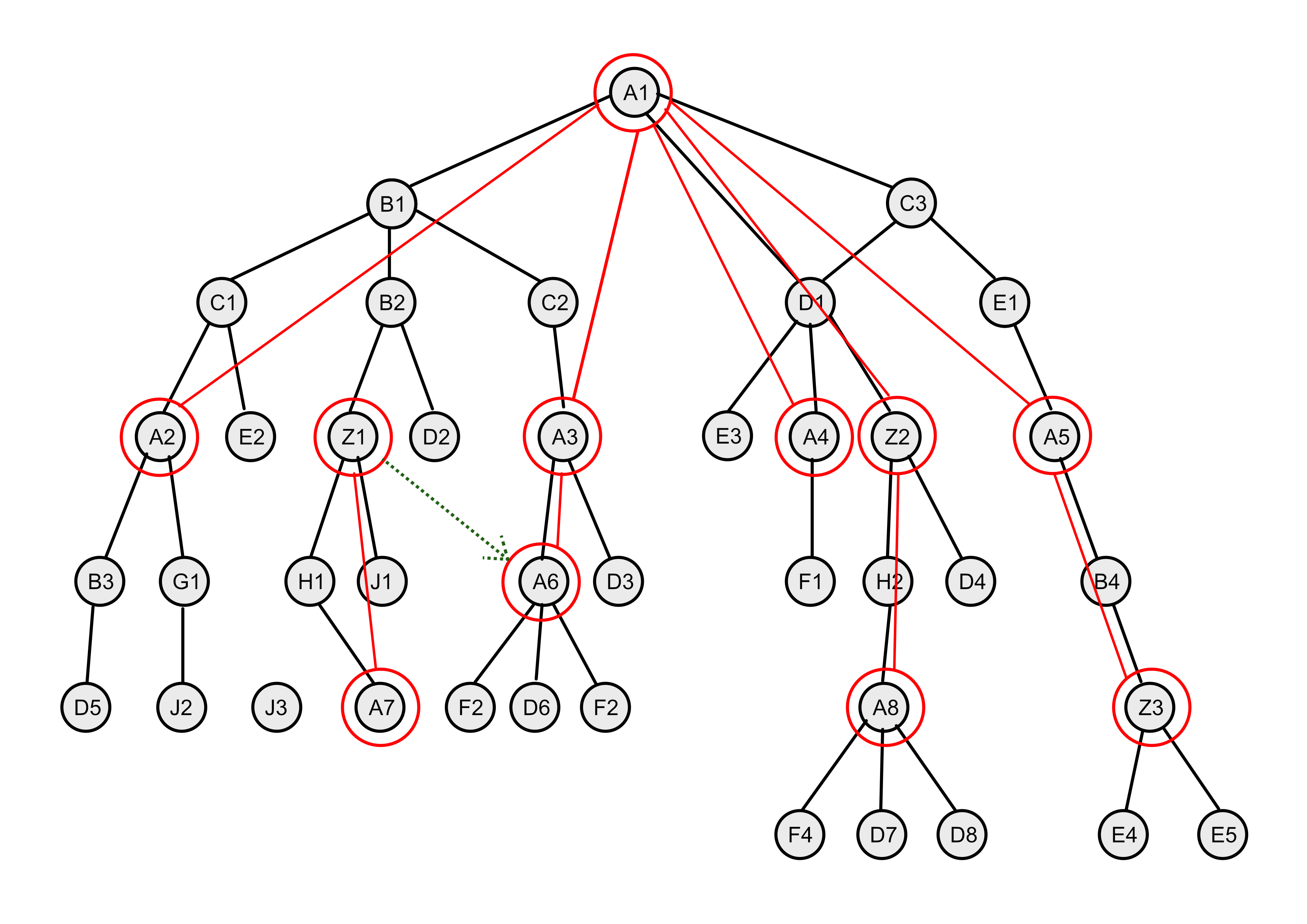

For instance, suppose in the following figure that node Z1 has a namespace replacement to node A6, as shown by the green arrow. In that case, the link between Z1 and its parent namespace A1 is broken. The visible nodes of Z1 are its declared nodes ([H1, J1, A7]), plus the declared nodes of A6 ([A6, F1, D6]).

Figure 1. AST with namespace alternative

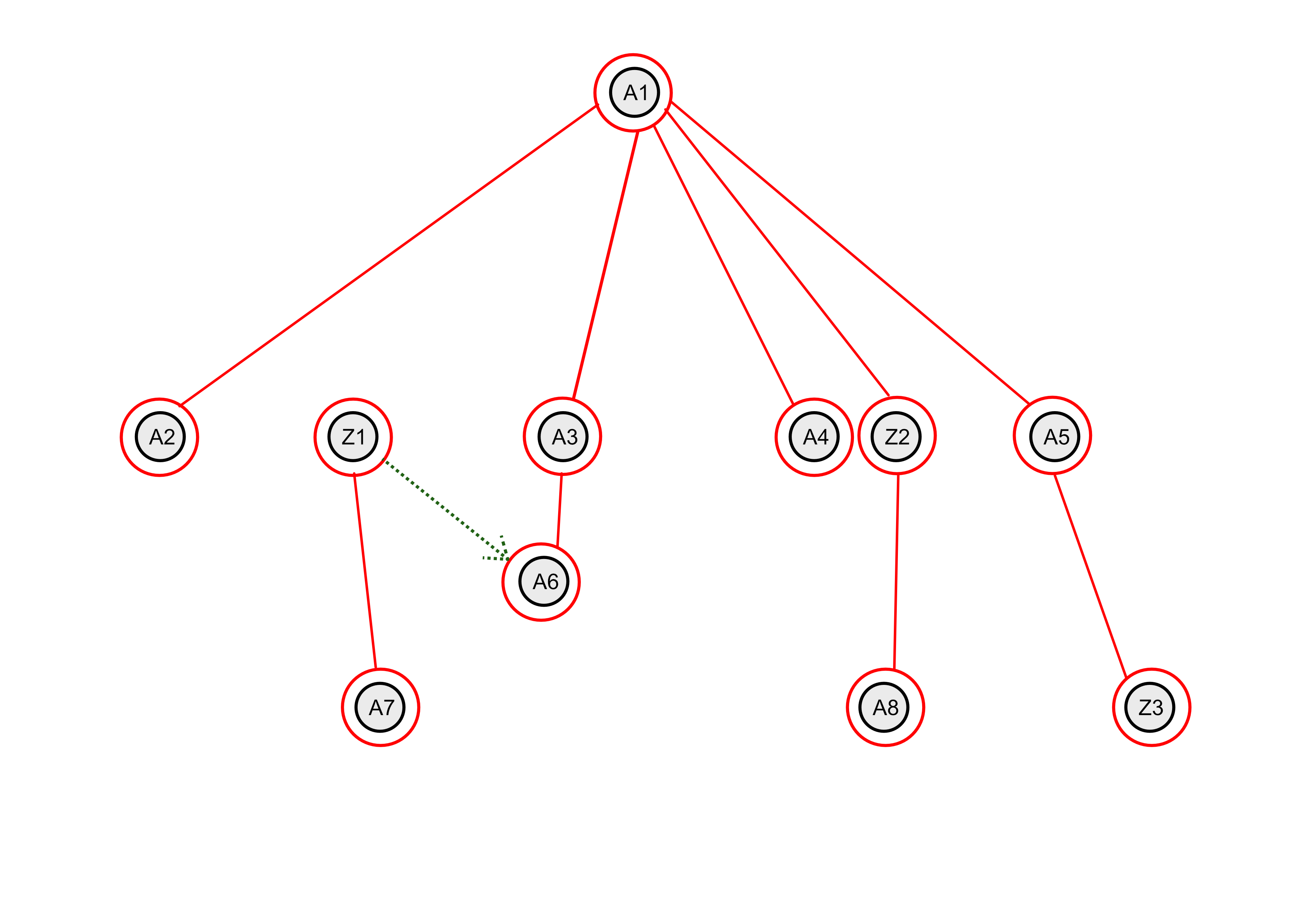

When we leave out the AST nodes, the difference to the namespace tree, will become clearer. Note that similar to the effect of a namespace import, the effect of a namespace alternative is that the namespace tree is changed into a graph.

Figure 2. Namespace Graph with alternative

Sometimes you may want to include not only the declared nodes of the alternative namespace, but its alternative nodes as well. We can define this in the scope file by adding the keyword recursive in front of the alternative namespace. Each alternative in the list can have its own keyword.

// Insurance/src/defs/scoper-docu.scope#L11-L15

AttributeRef {
	alternatives {
        self.owner().type();
    }
}

Let’s explore the case we mentioned earlier, where you want a qualified name in your DSL, like moduleA.partB. Suppose you would also like to be able to address local variables without the prefix, like localVarA. In that case you need to include concepts like the following in your .ast file. A SimpleVarReference represents a reference to local variables, a ComplexVarReference represents a reference with a prefix. To be prepared for the future where you might want to have modules within modules the target of a ComplexVarReference is either a SimpleVarReference (no prefix), or a ComplexVarReference (adding another prefix). The structure of your language would look like this:

// QName/src/defs/LanguageWithScopes.ast#L21-L31

abstract concept VarReference {
}

concept ComplexVarReference base VarReference {
    target: VarReference;
    reference module: Module;
}

concept SimpleVarReference base VarReference {
    reference target: Variable;
}

Now the scoper definition can be as follows.

// QName/src/defs/LanguageWithScopes.scope

scoper for language QName

isNamespace { Module, VarReference }

VarReference {
    alternatives {
        recursive owner().if(Module);
        owner().if(ComplexVarReference).module;
    }
}

Both Module and VarReference are namespaces, which means that we can define what is visible in both contexts. For Module we simply used the standard hierarchical manner of building namespaces. But VarReference is different. An instance of VarReference resides within a Module, so when the hierarchy of namespaces is used, everything that is visible in this Module would be visible in the VarReference. That is fine, when you want to refer to a local variable, because the local variables would indeed be visible in the surrounding Module. But it is not okay, when we want to refer to partA from ModuleA. In such an instance of a ComplexVarReference only what is visible in ModuleA should be visible.

So, we distinguish between these two cases by creating two alternative namespaces. The first expression is actually recreating the hierarchy of namespaces but only when the owning namespace is an instance of Module. Then the visible nodes consist of everything declared in this owning namespace, and because it is recursive, we get the nodes from its parents as well. The second expression yields a result when the VarReference exists within an instance of ComplexVarReference. In this case it defines the module property of its owner as its namespace.

We cannot define the scope of ComplexVarReference only, because then a SimpleVarReference within a ComplexVarReference would still have the scope of its parent, not of the module property of its parent.

To finish this off, let’s revisit the editor definition to get the appearance and behaviour right. When you make the following entries in the .edit file, any ComplexVarReference would indeed look like moduleA.partB, and any SimpleVarReference would look like partX. Now, the behaviour that you would normally get is that the user must create either a ComplexVarReference instance, or a SimpleVarReference instance, and then add the option from the correct list. The behaviour that you would like, is probably that the user is simply able to select an option from the correct list. The trick to get this behaviour is to add the reference shortcuts as shown below (See Ease of Editing).

// QName/src/defs/LanguageWithScopes.edit#L10-L20

ComplexVarReference {[
    ${module}.${target}
]
referenceShortcut = ${module}
}

SimpleVarReference {[
    ${target}
]
referenceShortcut = ${target}
}

As promised, here is the complete algorithm for building the namespace graph in pseudocode.

FreNamespace {
    getDeclaredNodes(publicOnly: boolean): FreNamedNode[] {
        return all AST nodes in the subtree of which this namespace is the top,
        and the leaves are AST nodes that are themselves namespaces.
        The parameter 'publicOnly' indicates whether to include AST nodes that are marked private.
        The constant 'ALL' indicates that all nodes should be included, the constant 'PUBLIC_ONLY'
        indicates the opposite.
    }
    getParentNodes(): FreNamedNode[] {
        THIS.parentNamespace.getVisibleNodes();
    }
    getImportedNodes(list: FreNamespaceInfo[]): FreNamedNode[] {
        list.forEach(import => {
            import.namespace.getDeclaredNodes(PUBLIC_ONLY)
        plus
            if (import is recursive) {
                import.namespace.getImportedNodes(import.namespace.imports)
            }
        })
    }
    getAlternativeNodes(): FreNamedNode[] {
        getDeclaredNodes(ALL) plus
        getImportedNodes(THIS.alternatives)
    }
    getVisibleNodes(): FreNamedNode[] {
        if (has replacement) then
            getAlternativeNodes()
        else
            getDeclaredNodes(ALL) plus
            getParentNodes() plus
            getImportedNodes(THIS.imports)
        endif
    }
}

With all this knowledge, we are finally able to explain how to write a Freon scoper definition. You can find this on the next page.
