Projection Fragments

You can define parts of a projection separately to create more flexible layouts. These parts are called fragments.

Fragment Definition

A fragment is defined in a similar way to normal projections, except it starts with the keyword fragment, followed by the name of the fragment. The content is given in the familiar manner between the square brackets ([]).

The next example defines two fragments called (rather unimaginative) First and Second. Each fragment for a given concept must have a unique name.

// Insurance/src/defs/editor-fragments.edit#L8-L24

]
    fragment First [
    First Card
        is still under construction: ${self.isUnderConstruction switch}
        is approved level1: ${self.isApprovedLevel1 radio}
        is approved level2: ${self.isApprovedLevel2 inner-switch}
        is approved level3: ${self.isApprovedLevel3 checkbox}
    ]
    fragment Second [
    Second Card
        [button text="Push me!" boxRole="MyButton-role"]
        yields profit: ${self.yieldsProfit}
        expected nr of use: ${self.nrOfUse slider}
        range: ${self.range}
        date: ${self.date}
    ]
}

One property, one occurrence in the editor

Unfortunately, it is not possible to show the same property of a concept twice in the same editor. The tooling we use to keep the state of the underlying model in sync with the view in the running editor does not allow us to do this.

Fragment Inclusion

Each fragment must belong to a concept entry in a .edit file but cannot be used directly inside the main projection. To include a fragment within a projection, use the syntax [fragment <FRAGMENT_NAME>], where <FRAGMENT_NAME> is the name of the desired fragment. Ensure there is no space between the opening square bracket ([) and the keyword fragment.

Thus, the complete example is the following. Note that the concept’s main projection is closed before defining its fragments.

// Insurance/src/defs/editor-fragments.edit#L3-L24

BaseProduct {
[
    Base Product for ${self.theme radio} ${self.name }
        [fragment First] [fragment Second]
        ${self.parts}
]
    fragment First [
    First Card
        is still under construction: ${self.isUnderConstruction switch}
        is approved level1: ${self.isApprovedLevel1 radio}
        is approved level2: ${self.isApprovedLevel2 inner-switch}
        is approved level3: ${self.isApprovedLevel3 checkbox}
    ]
    fragment Second [
    Second Card
        [button text="Push me!" boxRole="MyButton-role"]
        yields profit: ${self.yieldsProfit}
        expected nr of use: ${self.nrOfUse slider}
        range: ${self.range}
        date: ${self.date}
    ]
}

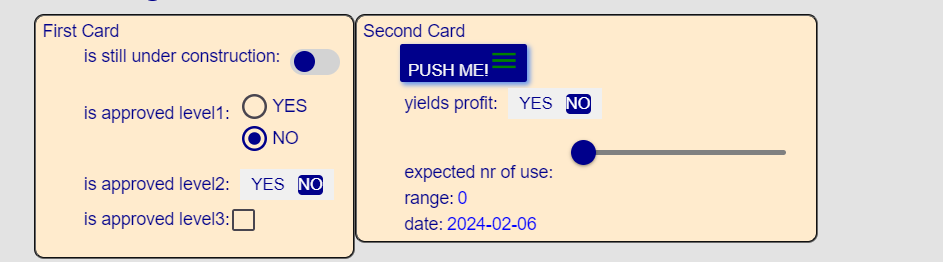

In this example the fragment boxes have been styled with a light yellow background. (More on styling can be found in Styling.) The styled editor looks like this.

Image 'documentation/Documentation-Fragments-screenshot1.png' seems to be missing
