Freon projections are very flexible. In this lesson we’re going to explore several ways to make your editor look great. We’re going to create tables!

We almost forgot to make an editor definition for the Flow model unit. Create a file called edu-flow.edit, and add the following lines. You should be familiar with everything in these projections by now.

// Education/lesson3-defs/edu-flow.edit

/* This file contains the default editor definition. */

editor default

Flow {[
    Flow ${self.name} for SiteGroup ${self.main}

    ${self.rules vertical}
]}

FlowRule {[
    -------------------------------------
    Name: ${self.name}
    Description: ${self.description}
    From page ${self.page}

        ${self.transitions}
]}

PageTransition {[
    when ${self.condition} goto page ${self.toPage}
]}

Yes—generate the editor and try it! To see this definition in action, click the arrow-left icon in the top bar and select StartFlow from the list of model units. It looks like this:

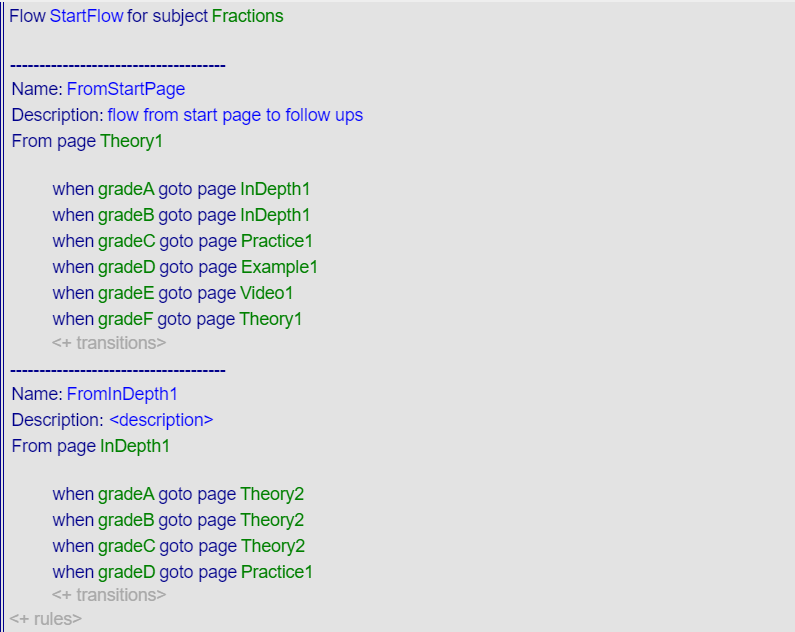

Figure 1. Editor after adding projections for the Flow model unit

With Freon you can have multiple views on the same concept. Freon generates a projectional editor.

Remember that the editor definition in the previous lesson and the one above are called default? That’s because you can create any number of editor definitions, each with its own name.

You can think of an editor as a different view on the model, but in terms of the editor definition, it’s simply a set of projection definitions. This set can change the appearance of a single concept or multiple concepts.

When an editor definition doesn’t include a projection for a certain concept, it falls back to a projection from another editor definition. Which projection is chosen is determined by a fixed algorithm. For details, see Editor Precedence.

Let’s create a second editor definition for the Flow model unit—one that displays the list of PageTransitions in a FlowRule as a table. We’ll name this editor definition rules_as_table. Put it in edu-flow-table.edit.

// Education/lesson3-defs/edu-flow-table.edit#L3-L3

editor rules_as_table

To create a projection for FlowRule, we’ll reuse the default projection with one change: we remove the keyword vertical from ${self.transitions} and add table.

Furthermore, we want one element per row, so we add the keyword rows.
(You can also display one element per column using columns.)

// Education/lesson3-defs/edu-flow-table.edit#L5-L12

FlowRule {[
    -------------------------------------
    Name: ${name}
        Description: ${self.description}
        For page ${page}

        ${self.transitions table rows}
]}

Next, define the table itself. Each element in the list is an instance of the PageTransition concept, so we add a projection for this concept—but we prefix it with the keyword table.
This means the projection is only used when the concept is rendered within a list projected as a table.

You may also add headers (taken literally). Here the headers are Condition and Goto Page.
The | character separates columns. Headers are optional.

Finally, specify the cell content by indicating which property goes into each column.

// Education/lesson3-defs/edu-flow-table.edit#L14-L17

PageTransition { table [
    Condition          | Goto Page
    ${self.condition}  |  ${self.toPage}
]}

Note that for PageTransition we defined a table with two parts. The context in which these objects are projected determines whether they appear as rows or columns.

After saving edu-flow-table.edit, run the generator again. Find the model unit named StartFlow and… yes, there’s a table. Try switching rows to columns in the FlowRule projection to see the difference.

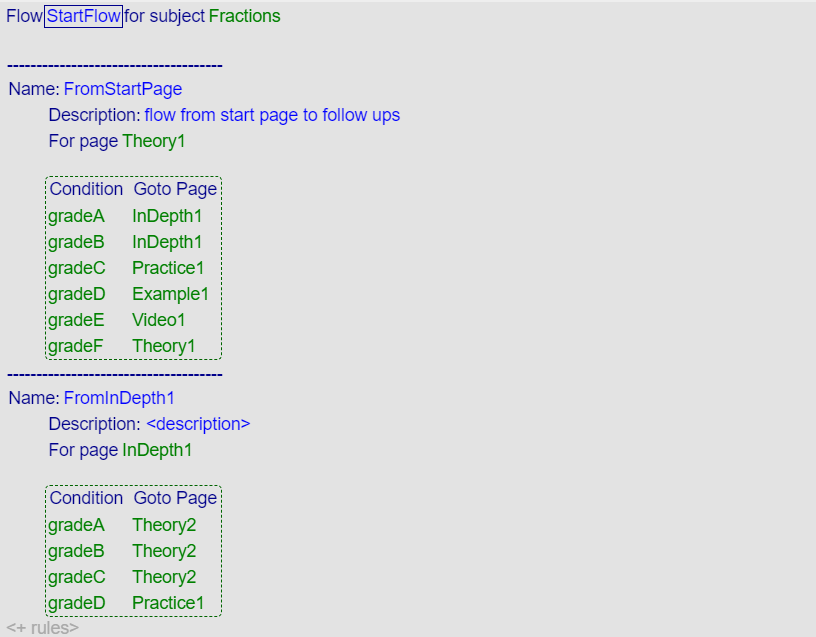

Figure 2. Editor after adding projections for the Flow model unit

If you want to revert to the earlier look, open the View menu, deselect rules_as_table, and click Apply changes.
The menu lists each editor definition by name; as you add more, you can toggle them on or off.

We mentioned that there is an algorithm that determines which projection is shown. Sometimes you want to force a specific projection. You can do this by stating the concept and the editor name using [=>ConceptName:editor-name]—for example, [=>Page:footing].

Before using the footing editor, create it. Add a file called page-footing.edit and copy:

// Education/lesson3-defs/page-footing.edit#L3-L8

editor footing

Page {[
    Questions:
        ${self.questions vertical terminator [END]}
]}

Now we can specify a specific editor. Rewrite edu-topics.edit as follows:

// Education/lesson3-defs/edu-topics.edit#L17-L60


Theory {[
    ----------------------------------------------------
    Theory [=>Page]
        ${self.content vertical  terminator[== END OF LINE]}

        [=>Page:footing]
]}

Video {[
    ----------------------------------------------------
    Video [=>Page]
        Maybe this video will help you understand.
        ${self.url}

        [=>Page:footing]
]}

WorkSheet {[
    ----------------------------------------------------
    Worksheet [=>Page]
        See if you can answer the following questions.

        [=>Page:footing]
]}

ExamplePage {[
    ----------------------------------------------------
    Example [=>Page]
        ${self.content}

        Now, please, answer the following questions.

        [=>Page:footing]
]}

InDepthMaterial {[
    ----------------------------------------------------
    InDepthMaterial [=>Page]
        ${self.content}

        Test your understanding by answering the following questions.

        [=>Page:footing]

Try it out! There’s a lot of fun to be had with projections. In the next lesson we’ll add expressions to the metamodel and to the editor definitions.
