Now we have dealt with information from the DSL, we are ready to take on the next challenge, to get information from the server. Of course, the server needs to be running, so do not forget to execute the following command in the folder /packages/dsl.

npm run server

To make things a bit more interesting we have implemented two ways to open a model. First, you can add the name of the model to the url in the address bar of your browser. Second, you can choose a model from the list of models available on the server. For this option we need to open a dialog. (Again, we are mimicking what the standard web app is capable of.)

Below is the code that implements this. Note that we have moved all code to actually open the model, and to get the names of the available models, to the before mentioned class WebappConfigurator.

// IntegrationExample/webapp/src/lib/main-app/WebappLayout.svelte#L24-L42

nMount(async () => {
// If a model is given as parameter, open this model
// A new model is created when this model does not exist
const urlParams = new URLSearchParams(window.location.search);
const model = urlParams.get('model');
if (model !== null) {
	openModel(model);
} else {
	// No model given as parameter, open the dialog to ask for it
	// Get list of models from server
	const names = await WebappConfigurator.getInstance().getAllModelNames();
	if (!!names && names.length > 0) {
		// Make the names available for the dialog
		serverInfo.allModelNames = names;
	}

	// open the app with the open/new model dialog
	dialogs.openModelDialogVisible = true;
}

So, let’s have a look at the WebappConfigurator. We first examine the openModel function. As you see, the InMemoryModel class (here placed in the variable modelStore) from the @freon4dsl/core package is doing the actual work. Here we take the model unit identifiers (a list of name-id pairs), find the first unit in the list, and show it in the editor.

Two things need to be done for this to function properly.

• We need to clear all box caches, because they are no longer valid (done by BoxFactory.clearCaches()).
• The projections also need to be cleared (done by this.editorEnvironment?.projectionHandler.clear()).

Then we are all set to show the model in the editor, which will be explained in Adding the Editor. Finally, we store information on the units in updateUnitList().

More on Freon’s Box Model can be found in Editor Framework

// IntegrationExample/webapp/src/lib/language/WebappConfigurator.ts#L99-L122

async openModel(modelName: string) {
    if (!!this.modelStore) {
        // create new model instance in memory and set its name
        await this.modelStore.openModel(modelName);
        const unitIdentifiers = this.modelStore.getUnitIdentifiers();
        LOGGER.log('unit identifiers: ' + JSON.stringify(unitIdentifiers));
        if (!!unitIdentifiers && unitIdentifiers.length > 0) {
            // load the first unit and show it
            let first: boolean = true;
            for (const unitIdentifier of unitIdentifiers) {
                if (first) {
                    const unit = this.modelStore.getUnitByName(unitIdentifier.name);
                    LOGGER.log("UnitId " + unitIdentifier.name + " unit is " + unit?.name);
                    this.currentUnit = unit;
                    BoxFactory.clearCaches()
                    this.editorEnvironment?.projectionHandler.clear()
                    this.showUnit(this.currentUnit);
                    first = false;
                }
            }
        }
        this.updateUnitList()
    }
}

Upon submit, the Svelte dialog component also uses the WebappConfigurator.openModel and WebappConfigurator.newModel functions to actually open or create the model. The if-statements in the code check whether the user has entered a valid model name.

// IntegrationExample/webapp/src/lib/dialogs/OpenModelDialog.svelte#L47-L57

async function handleSubmit() {
	const comm = WebappConfigurator.getInstance();
	// console.log('Handle "submit": ' + newName)
	if (internalSelected?.length > 0) { // should be checked first, because newName depends on it
		await comm.openModel(internalSelected);
		// $initializing = false;
	} else if (!newNameInvalid() && newName.length > 0) {
		console.log("CREATING NEW MODEL: " + newName);
		await comm.newModel(newName);
		// $initializing = false;
	} else {

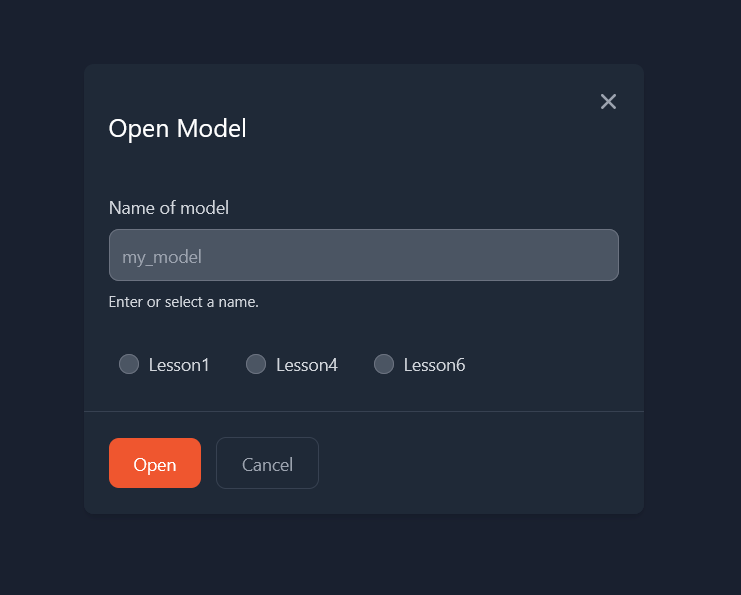

The result of our work is that upon opening the web page (without the model parameter in the address bar), the open model dialog pops up.

Figure 1. The open model dialog

As promised, we are going to show you how to add information to the Model Drawer. Here we are going to focus on the inner list. All units in the model should be sorted based on their type, and every one of them should have a dropdown menu associated that enables opening, saving etc. of that specific model unit.

As you can see, we loop over a list called myUnits, and check whether the list item has the same type as unitType. This sorts out the units based on their type. Then we show the unit’s name, and add a dropdown menu where every function takes the index in myUnits as parameter.

// IntegrationExample/webapp/src/lib/main-app/ModelInfo.svelte#L66-L90

<Listgroup>
    {#each langInfo.unitTypes as unitType}
        <Heading tag="h5" class="pl-2">{unitType}</Heading>
        <ListgroupItem class="gap-2 text-base font-semibold">
            <Listgroup>
                {#each myUnits as unit, index}
                    {#if unit.freLanguageConcept() === unitType}
                        <div class="flex justify-between">
                            {unit.name}
                            <DotsHorizontalOutline class="dots-menu1 inline dark:text-white"/>
                        </div>
                        <Dropdown triggeredBy=".dots-menu1">
                            <DropdownItem onclick={() => (openUnit(index))}>Open</DropdownItem>
                            <DropdownItem onclick={() => (saveUnit(index))}>Save</DropdownItem>
                            <DropdownItem onclick={() => (renameUnit(index))}>Rename</DropdownItem>
                            <DropdownItem onclick={() => (deleteUnit(index))}>Delete</DropdownItem>
                            <DropdownItem slot="footer" onclick={() => (exportUnit(index))}>Export</DropdownItem>
                        </Dropdown>
                    {/if}
                {/each}
            </Listgroup>
        </ListgroupItem>
    {/each}
    <!-- Instead of DotsHorizontalOutline we could use ChevronDownOutline-->
</Listgroup>

To keep myUnits in sync with the current model, we use a Svelte effect. Here we use a state variable, called modelInfo, that was set by the WebappConfigurator.updateUnitList().

// IntegrationExample/webapp/src/lib/main-app/ModelInfo.svelte#L16-L28

$effect(() => {
    myUnits = !!modelInfo.units && modelInfo.units.length > 0
        ? modelInfo.units.sort((u1: FreModelUnit, u2: FreModelUnit) => {
            if (u1.name > u2.name) {
                return 1;
            }
            if (u1.name < u2.name) {
                return -1;
            }
            return 0;
        })
        : [];
});

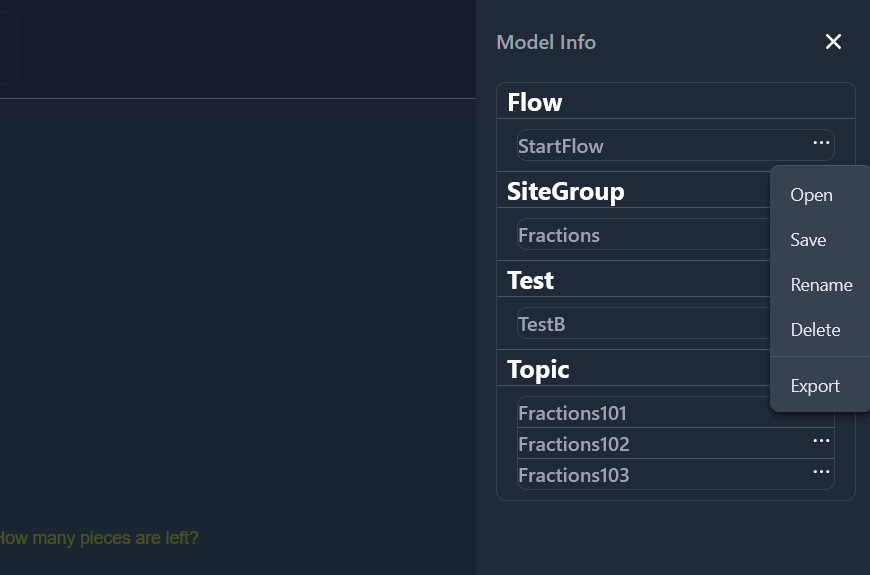

When we open the model information drawer, we can see the result of all our work.

Figure 2. Open drawer showing the model information
